A bogie is a critical load-bearing and running component of a railway vehicle. It typically consists of the bogie frame, wheelsets, axleboxes, suspension system, damping devices, and braking components. In addition to carrying vehicle loads, the bogie guides the vehicle along the track and has a direct impact on running stability, ride comfort, and operational safety.
Different bogie structures and design parameters directly affect the interaction between the vehicle and the track. Therefore, proper bogie design is essential for improving the overall performance of railway vehicles.
During operation, railway vehicles must continuously adapt to track curves, track irregularities, and dynamic loads generated at different speeds. The structural design of the bogie directly influences the running stability of the vehicle.
The wheelset is an important component that directly interacts with the track. Its arrangement and wheelbase affect the vehicle's curve negotiation performance and stability during straight-line operation.
A properly designed wheelset arrangement and wheelbase can provide a better balance between high-speed running and curve negotiation while reducing unnecessary wheel-rail forces.
The axlebox guidance system determines how the wheelset moves relative to the bogie frame and plays an important role in the vehicle's dynamic performance.
Rigid guidance provides stronger constraints and more direct wheelset movement, while flexible guidance allows a certain degree of movement freedom, which can help reduce wheel-rail impact and vibration.
Therefore, the axlebox guidance system needs to be appropriately designed according to the vehicle's operating speed, track conditions, and application.
The suspension system is an important part of a railway bogie. It primarily supports vehicle loads, absorbs vibration, and improves overall running quality.
Modern railway vehicles commonly use primary and secondary suspension systems. The primary suspension is generally located between the wheelset and bogie frame and helps absorb vibration generated by wheel-rail interaction. The secondary suspension is located between the bogie frame and vehicle body and further reduces the transmission of vibration to the passenger compartment.
Proper suspension parameters can achieve a balance between running stability, vibration reduction, and ride comfort.
During high-speed operation, railway vehicles are affected by track irregularities, wheel-rail forces, and the vehicle's own dynamic movements. The suspension and damping systems in the bogie help reduce the transmission of these effects to the vehicle body.
Air springs are widely used in the secondary suspension systems of high-speed trains and urban rail transit vehicles.
Compared with conventional metal springs, air springs can provide appropriate support according to changes in vehicle load and offer effective vibration isolation and damping performance.
By properly controlling air spring stiffness and height, vehicle ride stability can be improved under different loading conditions.
During high-speed operation, wheelsets may experience hunting motion. Yaw dampers provide damping against relative movement between the bogie and vehicle body, helping improve vehicle stability at high speeds.
As a result, yaw dampers are an important component of bogies used on high-speed railway vehicles.
The bogie frame carries and transfers loads from the vehicle body and related components while also withstanding dynamic loads generated during operation.
Through proper design of the frame structure, materials, and connections, engineers can maintain sufficient strength and stiffness while controlling structural weight and improving the vehicle's dynamic performance.
In addition to running stability and ride comfort, the bogie plays an important role in vehicle safety. Its structural design must meet the requirements for reliable operation under long-term loading, dynamic loads, and complex track conditions.
Wheel tread profiles, flange geometry, axle load distribution, and suspension parameters all affect wheel-rail forces.
Proper wheel tread and flange design can improve wheel-rail contact conditions and, together with the bogie suspension system, influence the vehicle's curve negotiation performance and resistance to derailment.
Therefore, wheels and bogies cannot be designed independently. Wheel-rail interaction and vehicle dynamics need to be considered as an integrated system.
Railway bogies need to account for the safety of the vehicle when individual components experience abnormal conditions or performance degradation.
Through appropriate structural design and safety margins, the impact of partial failures in suspension, damping, or other components on overall vehicle performance and operational safety can be reduced.
This design philosophy is an important part of ensuring safe and reliable railway vehicle operation.
During long-term operation, bogies are subjected to a large number of cyclic loads. Therefore, the bogie frame, axles, wheelsets, and connecting components must have sufficient fatigue strength.
During the design stage, strength and fatigue analyses are required for critical load-bearing areas. During operation, regular inspection and maintenance help identify cracks, wear, and other potential defects in a timely manner.

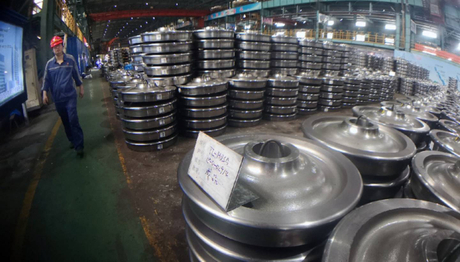

Wheels, axles, and wheelsets are key components of a railway vehicle's running system and are closely related to bogie performance. The wheels directly contact the rails, carrying vehicle loads and contributing to vehicle guidance, while the axle connects the two wheels and transfers loads and forces generated during operation.
Wheel tread profiles, flange dimensions, wheel materials, axle design, and wheelset assembly quality can all affect wheel-rail contact conditions, running stability, and operational safety.
Therefore, when designing a bogie, it is important to consider not only the bogie frame, axleboxes, suspension, and damping systems, but also the performance of the wheels, axles, and wheelsets. Different types of railway vehicles, including high-speed trains, passenger coaches, freight cars, and urban rail transit vehicles, have different requirements for the design, materials, manufacturing processes, and inspection standards of these components.
The bogie is a key link between the vehicle body, wheelsets, and track. Its design directly determines the running stability, ride comfort, and safety performance of a railway vehicle. From wheelset and axlebox guidance to primary and secondary suspension and damping systems, as well as the bogie frame, wheels, and axles, every component must work together as part of an integrated system. As railway vehicles continue to evolve toward higher speeds, heavier loads, and greater intelligence, manufacturing standards for bogies and related components are also becoming increasingly demanding.
