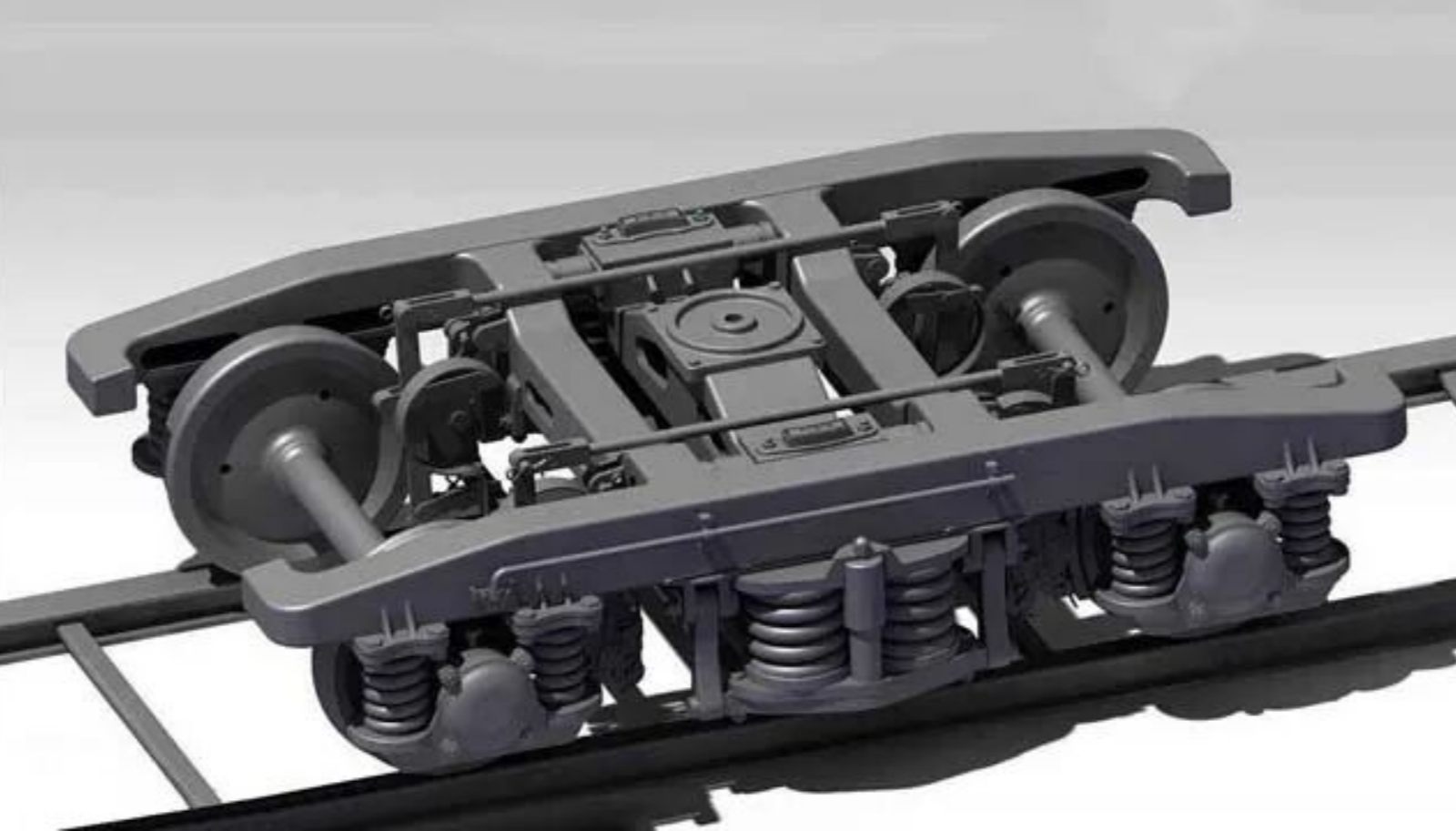

The running gear is the part of a railway vehicle that enables it to move along the track under traction power. The functions of the running gear are to ensure that the vehicle operates flexibly, safely, and smoothly along the rails and through curves; to reliably withstand various forces acting on the vehicle and transmit them to the rails; to cushion the impact between the vehicle and the rails, reduce vehicle vibration, ensure adequate ride stability and good running quality; and to incorporate a reliable braking mechanism to provide the vehicle with effective braking performance.

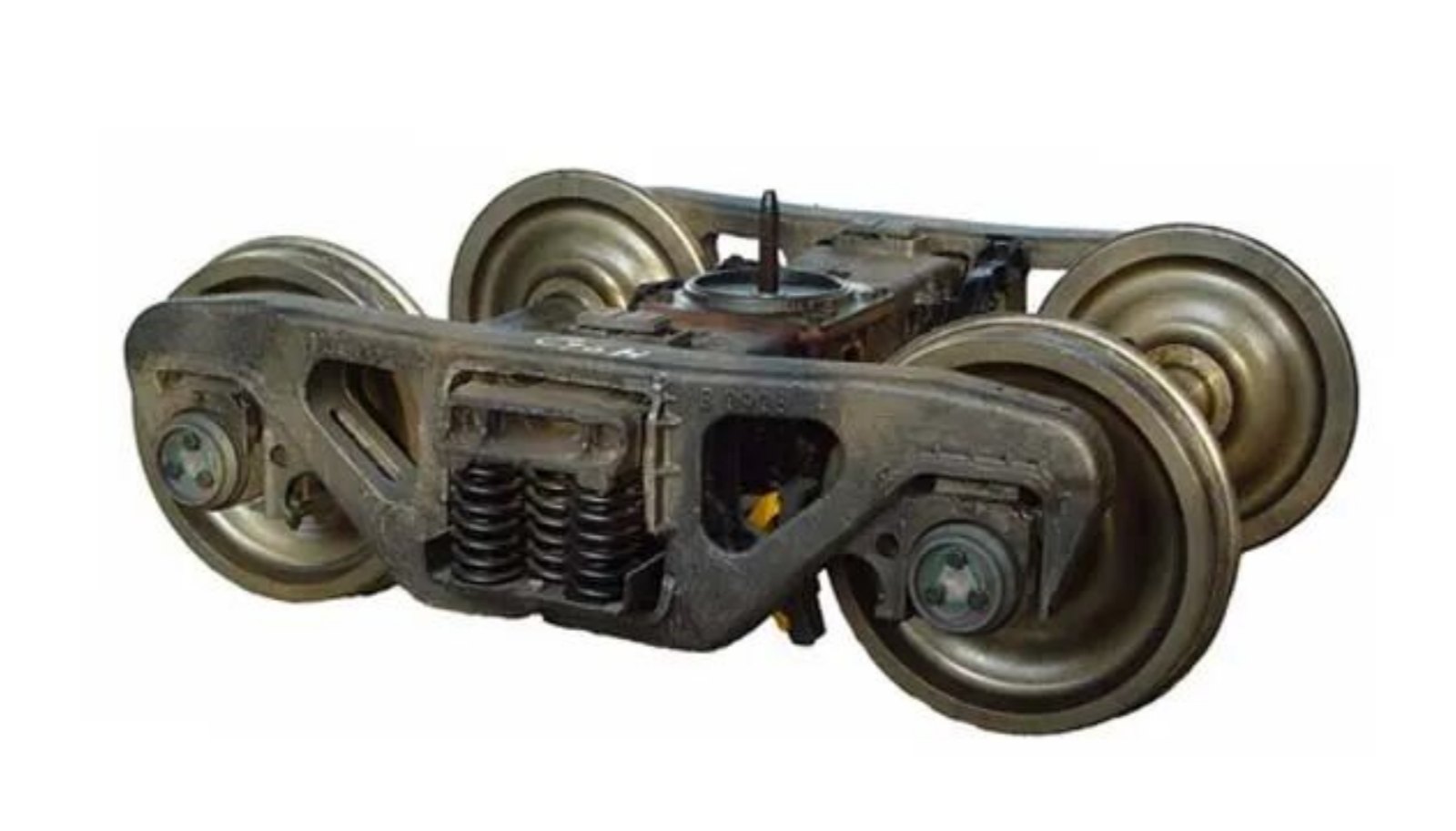

In the early stages of railway vehicle development, when load capacities and volumes were small, the running gear was very simple, typically adopting a two-axle structure in which the axles were directly mounted under the vehicle body. This type was known as a bogieless vehicle. As vehicle load capacity increased, the bogie structure became widely adopted. A bogie is an integrated assembly in which two or more wheelsets are connected by specialized structural components.

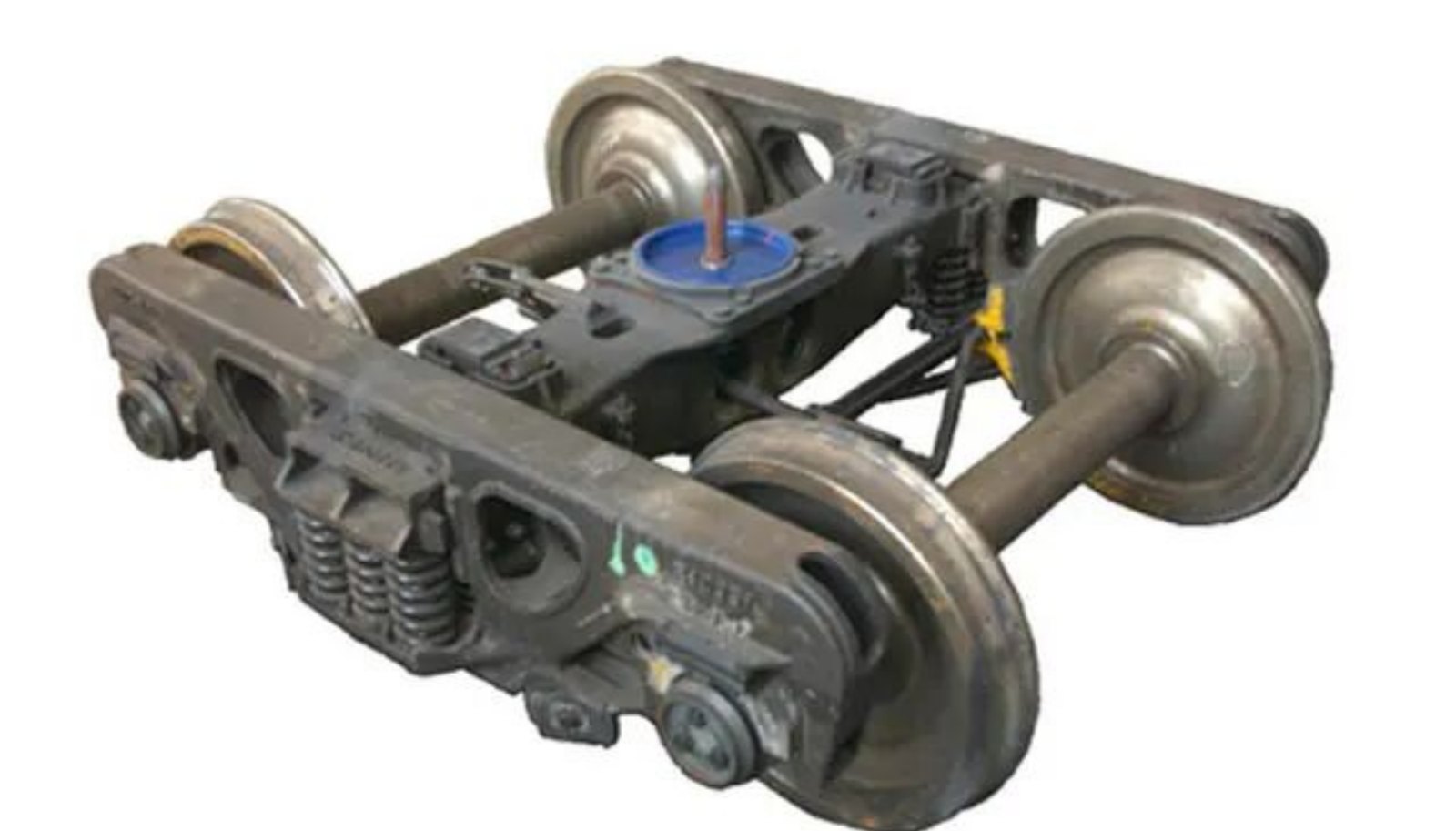

Due to differences in vehicle applications, operating conditions, manufacturing and maintenance capabilities, etc., there are many types of bogies with various structural configurations. Generally, a bogie mainly consists of wheelsets, side frames and bolsters, axle box lubrication devices, spring and damping devices, and foundation brake equipment.
A high-performance running gear and bogie system depends on the precision and durability of its core components—especially the wheelsets, axles, and wheels. At Ma'anshan Tianjun Machinery Manufacturing Co., Ltd., we specialize in supplying reliable wheels, axles, tyres, and wheelsets for locomotives, passenger coaches, wagons, metro vehicles, and mining cars. Our custom-made solutions and professional after-sale services ensure that your railway equipment maintains excellent running quality and braking performance. Contact us to equip your running gear with components you can trust.
