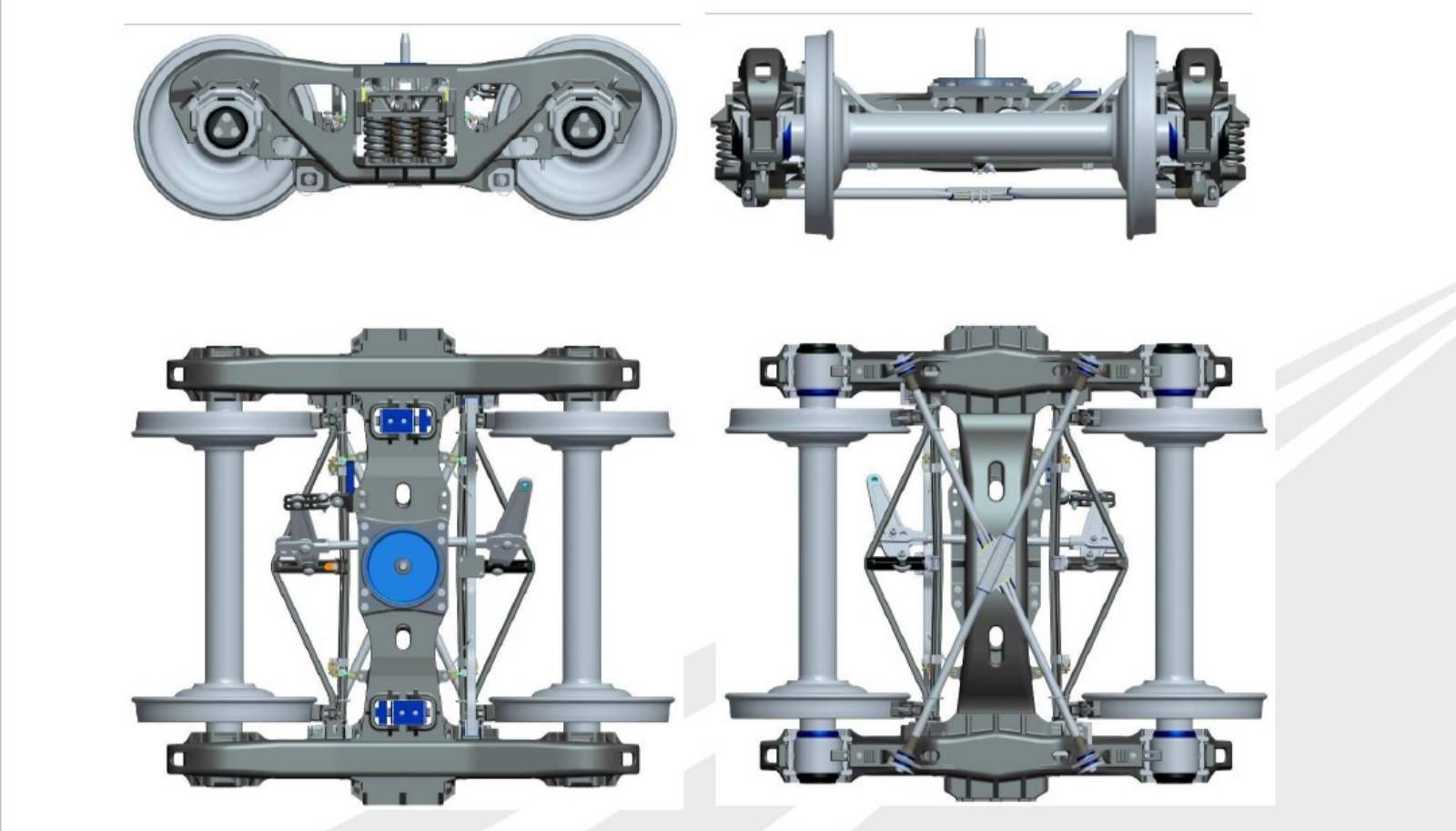

Bogie wheelbase refers to the longitudinal distance between the centerlines of two adjacent wheelsets within the same bogie. For a typical two-axle bogie, it is the distance between the centerlines of the two wheelsets.
In railway vehicles, a wheelset consists of an axle and two wheels and is mounted on the bogie. Bogie wheelbase is an important parameter for defining the geometric dimensions of a bogie. It affects the way wheelsets move on the track as well as the vehicle's curve negotiation performance.
It should be noted that a single-axle bogie has only one axle and therefore normally does not have a conventional bogie wheelbase. The term wheelbase is mainly used for bogies with two or more axles.
Bogie wheelbase is neither simply better when longer nor better when shorter. It needs to be properly designed according to the vehicle type, operating speed, and track conditions.
Bogie wheelbase affects the stability of a railway vehicle during operation. A properly designed wheelbase helps maintain good wheelset guidance and allows the vehicle to run more smoothly on the track. Therefore, the wheelbase needs to be appropriately selected according to the vehicle's operating conditions.
Bogie wheelbase affects the flexibility of a vehicle when negotiating curves. In general, a shorter wheelbase allows a bogie to negotiate tighter-radius curves more flexibly, enabling the wheelsets to better adapt to changes in track direction. A longer wheelbase, on the other hand, creates greater geometric constraints when negotiating tight curves. Therefore, the wheelbase should be designed to match the curve radius and operating conditions of the railway line.
Bogie wheelbase also affects the interaction between the wheels and rails. When a vehicle runs on straight track or negotiates curves, different wheelbases can result in different wheelset movements, thereby affecting the forces between the wheels and rails. A properly designed wheelbase can help improve wheel-rail load distribution, promote smoother vehicle operation, and help control wheel and rail wear.
Therefore, bogie wheelbase is an important design parameter of a railway vehicle's running gear. A properly designed wheelbase can achieve a balance between running stability, curve negotiation performance, and wheel-rail interaction, helping meet the operating requirements of different railway vehicles.
Bogie wheelbase is an important dimensional parameter of a railway vehicle's running gear. It not only determines part of the bogie's geometric dimensions but also affects running stability, curve negotiation performance, and wheel-rail interaction. Therefore, the proper selection and design of bogie wheelbase are important for ensuring smooth and safe railway vehicle operation.
