Trains, as a vital part of modern transportation, carry billions of passengers and goods across cities every day. But have you ever noticed that train wheels are not simple cylinders, but instead feature a unique conical design? This seemingly minor shape difference actually embodies brilliant engineering wisdom.

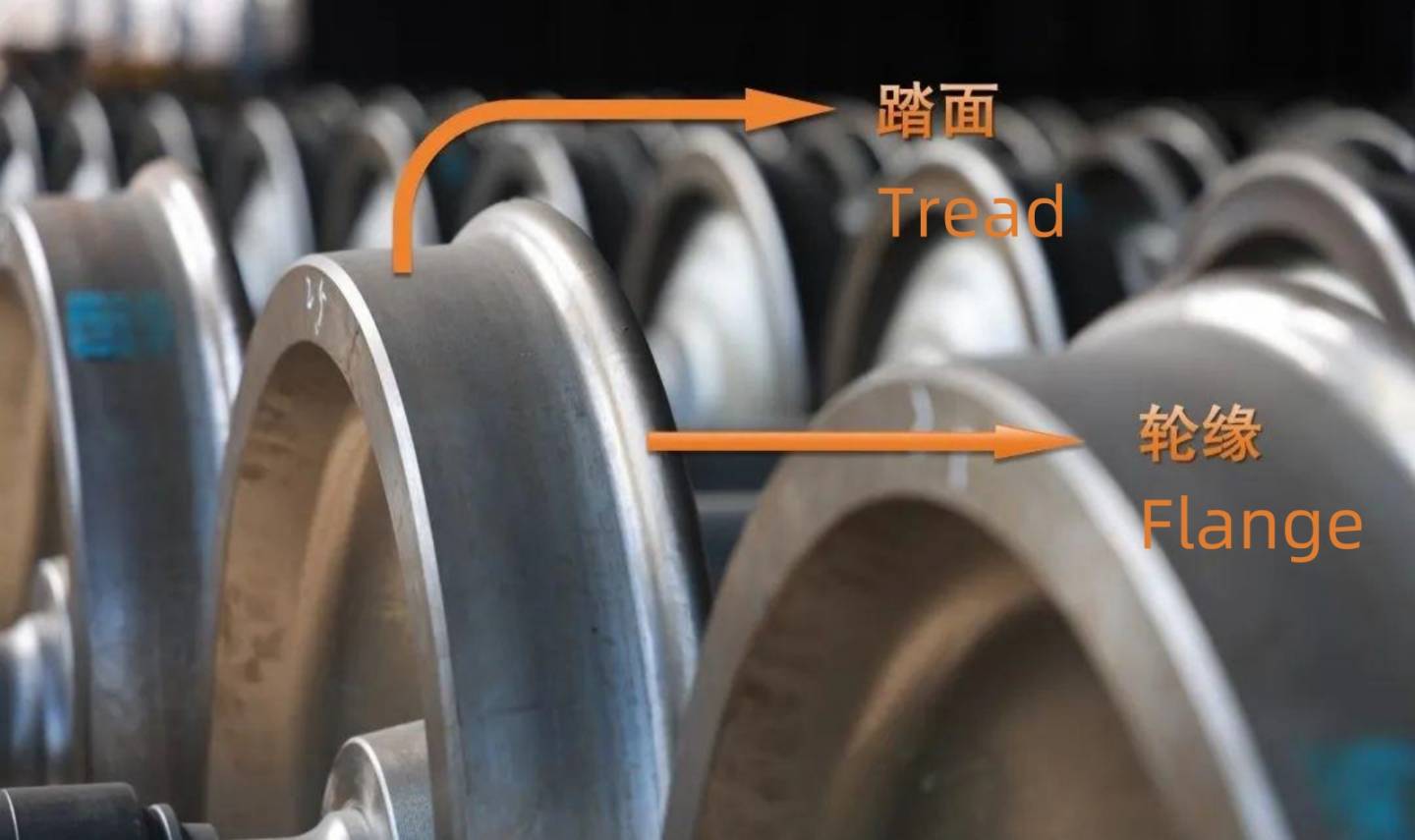

When viewed from the side, train wheels reveal a distinct structure: an inner protruding flange and a contact surface with the rail called the tread. The most notable feature is that the tread is not flat but slightly tapered—the radius near the flange is larger, while the outer edge has a smaller radius. This conical design is no accident; it is the result of meticulous engineering.

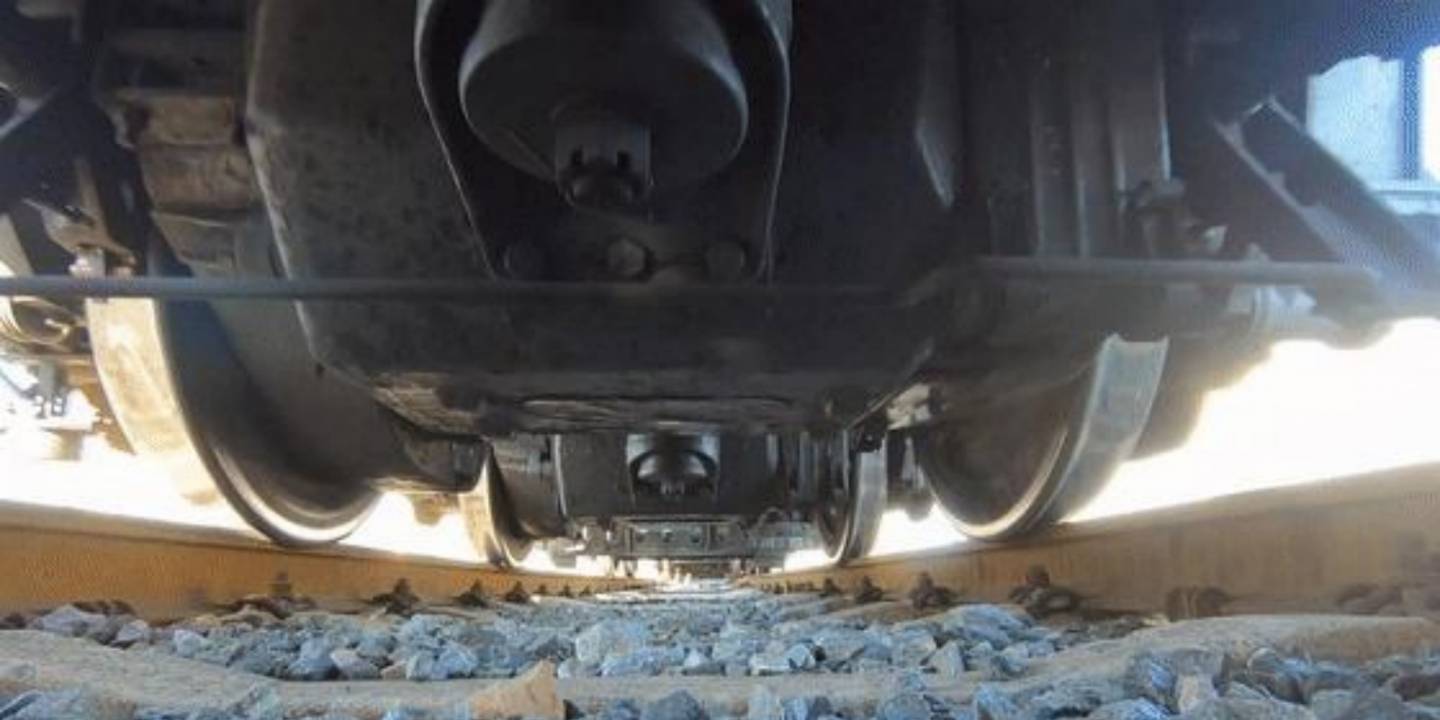

When a train navigates a curve, the outer and inner wheels must travel different distances. The conical wheel design allows the wheelset to adjust automatically: the outer wheel contacts the larger-radius section, while the inner wheel rolls on the smaller-radius part, creating a natural speed difference. This mechanism prevents excessive friction between wheels and rails, significantly reducing wear on both the flange and the track.
The conical shape ensures the train naturally centers itself on the tracks. If the wheelset drifts slightly off-center, gravity pulls it back into alignment. This self-correcting mechanism greatly enhances stability, minimizing the need for manual adjustments.
At high speeds on curves, trains experience strong centrifugal forces. The conical wheel design shifts the contact point, generating a counteracting centripetal force that reduces body tilt. This allows high-speed trains to remain stable even on sharp turns.
A wheelset—composed of two conical wheels and an axle—does not move in a perfectly straight line but follows a slight sinusoidal (snaking) path. This "hunting motion" is key to maintaining smooth operation. The interplay between conical wheels and this oscillating movement enables massive trains weighing hundreds of tons to travel safely at speeds exceeding hundreds of kilometers per hour.
The evolution from cylindrical to conical wheels represents over a century of railway engineering ingenuity. This design not only solves critical challenges in steering, stability, and centrifugal force balance but also lays the foundation for modern high-speed rail. Next time you board a train, take a moment to observe these seemingly simple yet crucial wheels—marvels of engineering that keep our journeys smooth and safe.
