Common Faults in Railway Freight Car Wheelsets: An In-Depth Analysis

Introduction

The wheelset is the core component of a railway freight car's running gear, directly determining operational safety and stability. Throughout its service life, it endures complex dynamic loads, frequent curve negotiation, switch passing, and intense braking conditions, making it prone to various forms of damage. This article provides a detailed analysis of common wheelset faults—including flange wear, rim cracks, and tread defects—and discusses their causes and potential consequences.

1. Flange Wear

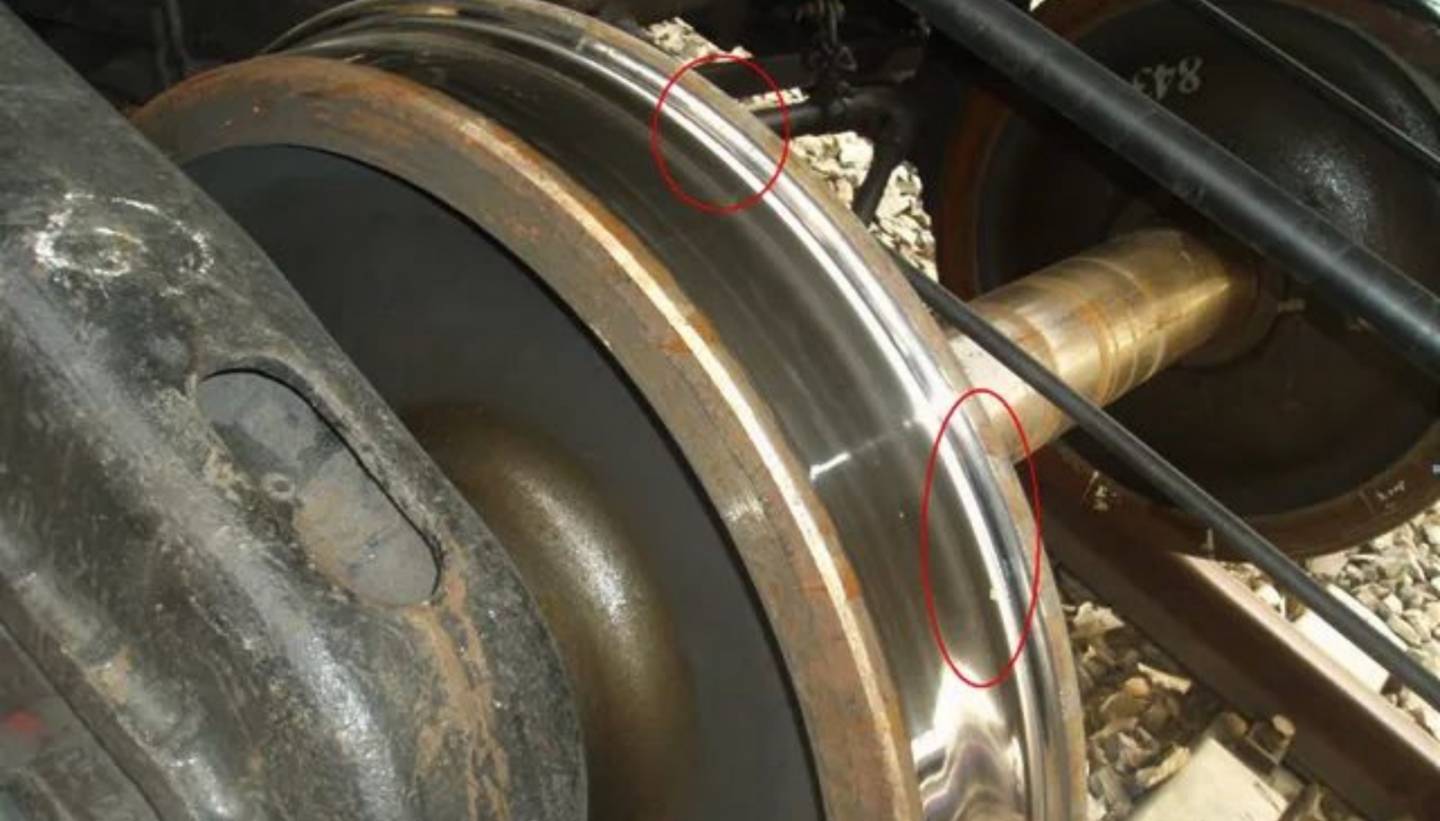

Under normal operating conditions, flange wear is generally mild. However, when a train travels through curves or switches, the flange experiences significantly increased loads. This forces the wheelset toward one side of the track, resulting in severe localized wear. Repeated exposure to such conditions accelerates flange deterioration, ultimately compromising steering stability and increasing derailment risk.

2. Wheel Rim Cracks

Emergency braking events subject wheelsets to intense impact and vibrational forces. If minor cracks already exist on the wheel rim, stress can concentrate around these defects, leading to crack propagation. If undetected, these cracks can develop into fatigue fractures.

· Inner rim cracks may expand under centrifugal force during curve negotiation, damaging the flange root.

· Outer rim cracks can cause tread material to break away during operation.

Both scenarios significantly elevate the risk of derailment or even catastrophic accidents.

3. Tread and Flange Defects

The tread and flange form the functional interface between wheel and rail. Common defects include:

· Circumferential Wear:

Gradual material loss occurs along the tread circumference due to factors such as operating speed, load variations, manufacturing quality, and bogie design.

· Tread Cracks:

Caused by excessive friction during wheel slip, locking, or severe braking, generating high heat that induces thermal stress. Two common types are:

  -Quench cracks caused by rapid cooling

  -Hidden cracks resulting from plastic deformation absorbing thermal stress

· Tread Peeling:

Flaking or pitting of the tread surface, mainly categorized as:

  -Fatigue peeling

  -Thermal peeling：Peeling compromises wheel-rail contact and can lead to unstable running behavior.

Conclusion

The primary faults affecting railway freight car wheelsets—flange wear, rim cracks, and tread damage—typically originate from extreme mechanical and thermal stresses during operation. Left undetected, these defects can evolve into serious failures with potential safety hazards.

In our next article, we will explore advanced monitoring technologies and maintenance strategies to prevent and address these critical wheelset issues.
